Product Details

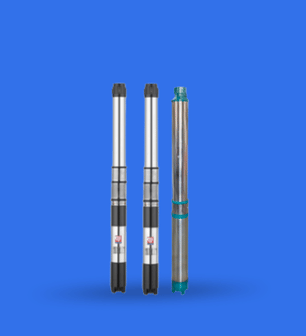

3" Borewell Water-Filled Submersible Pump Sets - 12ft (PLUS Series)

The 3" Borewell Water-Filled Submersible Pump Sets – 12ft (PLUS Series) are engineered to deliver dependable water flow with efficient performance in borewell applications. Their compact construction makes them suitable for narrow borewells, while the water-filled motor provides effective cooling during operation.

Product Overview

Type:	3" Borewell Water-Filled Submersible Pump Sets - 12ft (PLUS Series)
Phase Options:	Single Phase (SP)
Voltage:	180V to 220V, 50Hz AC Supply
Speed:	Approx. 2800 RPM
Power Range:	0.5 HP to 1.5 HP
Discharge:	15 - 100 LPM
Head Range:	10 - 80 Mtr
Liquid Temperature	Maximum 45° C
Direction of Rotation	Anticlockwise when observed from top view

COMPLETE MODEL SPECIFICATIONS

MODEL INFORMATION				MOTOR	PUMP SPECS	Head in METER and Discharge in LPM				TAG
No.	MOTOR BODY	SP Model No.	ISI Mark	HP	Outlet (mm/Inch)	METER/LPM	METER/LPM	METER/LPM	METER/LPM	New
1	Stainless Steel	J510V3	-	0.5	25/1"	34/4	28/30	24/35	20/40	NEW
2	Stainless Steel	J58V3	-	0.5	25/1"	27/05/	22/40	19/45	16/50	NEW
3	Stainless Steel	J7515V3	-	0.75	25/1"	50/4	42/30	36/35	30/40	-
4	Stainless Steel	J7512V3	-	0.75	25/1"	40/5	33/40	28/45	24/50	-
5	Stainless Steel	J7510V3	-	0.75	25/1"	34/5	28/40	24/45	20/50	-
6	Stainless Steel	J758V3	-	0.75	25/1"	27/10/2026	22/50	19/60	16/64	-
7	Stainless Steel	J120V3	-	1	25/1"	64/4	56/30	48/35	40/40	-
8	Stainless Steel	J115V3	-	0.75	25/1"	50/5	42/40	36/45	30/50	-
9	Stainless Steel	J110V3	-	1	25/1"	34/10	28/50	24/60	20/64	-
10	Stainless Steel	J1525V3	-	1.5	25/1"	85/4	70/30	60/35	50/40	-
11	Stainless Steel	J1520V3	-	1.5	25/1"	64/5	56/40	48/45	40/50	-
12	Stainless Steel	J1515V3	-	1.5	25/1"	50/10	42/50	36/60	30/64	-
13	Stainless Steel	J1512V3	-	1.5	25/1"	42/10	35/50	30/60	26/64	-
